SPY SYSTEM


  • Control system for managing and supervising installations with self contained luminaire
IP20
IP30

List of results, divided by function

Spy System is the most advanced system for the complete management, supervision and maintenance of an emergency system with self-contained luminaires.

ADVANTAGES
  • Automatic luminaire acquisition
  • Very user-friendly graphic interface
  • Complete programmability of the central unit's operating modes
  • Complete programmability of the times and days the tests are to be carried out
  • Non-volatile historic memory of the events and tests carried out on the system
  • Possibility to switch ON/OFF and to change the light intensity of maintained luminaires
  • Data exchange with luminaires on two-wire data buses with safety protocol
  • 2 and 4 way repeater modules
  • Built-in web server for system management via internet
  • Possibility of remote connection via modem
  • System wireless interface
  • MODBUS
  • KONNEX
  • Possibility to update central unit software
SYSTEM COMPOSITION


The Spy System central unit must be used in conjunction with luminaires of the Spy System family.

The central unit can monitor and control each luminaire.

SPY SYSTEM VERSION COMPARISON

Discover the features of Linergy Spy System and find the best fit for your installation

Learn more


  Display Printer Max luminaires handled Wireless option Installation
SSCENT-PR
1280 Wall mounted
SSCENT-00
1280 Wall mounted
SSPRO-PR
1280 19" Rack
(4 units)
SSPRO-00
1280 19" Rack
(4 units)
SSPRO-II
1280 19" Rack
(1 units)
SSMINIPLUS
Optional 98
(expandable)
DIN rail
SSMINIPLUS-00
Optional 128
(expandable)
DIN rail
SSMINIPLUS-170
Optional 170
(expandable)
DIN rail
SSMINI
Optional 98
(expandable)
DIN rail
SSMINI-00
Optional 128
(expandable)
DIN rail
SSMINI-170
Optional 170
(expandable)
DIN rail
SSMICRO
Can be managed with iOS and Android
devices via app downloadable from
App Store Disponibile su Google Play
30 DIN rail
SSW-ACCESS-POINT
Wireless bridge for Spy System units
128
(wireless)
  DIN rail
EXPANDER




  • Repeater module that allows to increase the capacity of the Mini and Mini Plus series central units
  • It make possible to add 2 or 4 lines and up to 512 luminaires for the connected central unit
  • It allows maximum flexibility because the luminaires in the installation can be distributed in a rational way throughout the extra lines
Code Additional lines Additional luminaires
SS-EXP-1 2 64
SS-EXP-2 2 128
SS-EXP-3 4 256
SS-EXP-4 4 512

Learn more



  Code Standard capacity Capacity with Expander
SS-EXP-1 SS-EXP-2 SS-EXP-3 SS-EXP-4
SSMINI 98 162 226 354 610
SSMINI-00 128 192 256 384 640
SSMINI-170 170 234 298 426 682
SSMINIPLUS 98 162 226 354 610
SSMINIPLUS-00 128 192 256 384 640
SSMINIPLUS-170 170 234 298 426 682

Maximum number of luminaires manageable = 682 (170 + 512)



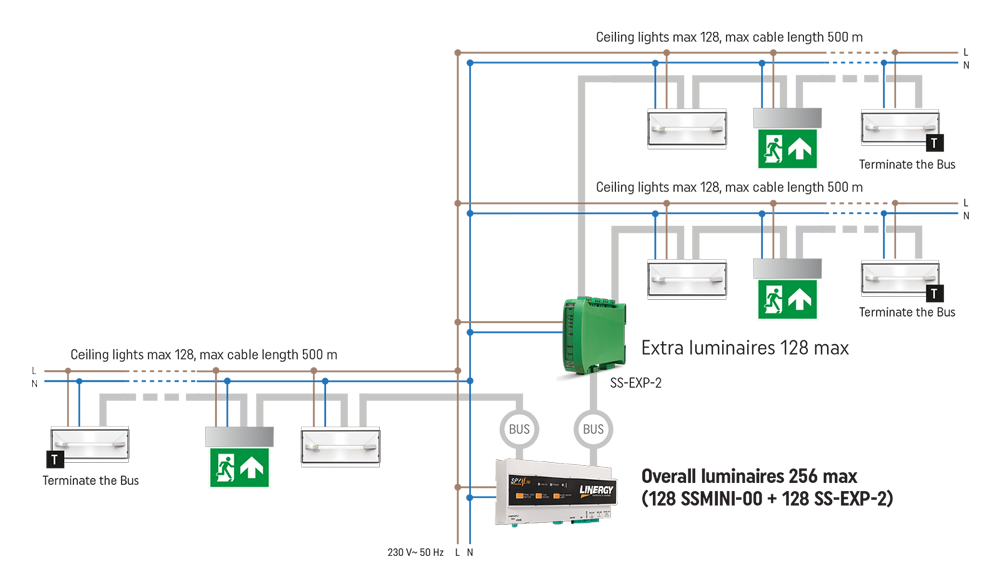

EXAMPLE OF CONNECTION DIAGRAM WITH BUS EXPANDER GIVING 2 EXTRA LINES (SSMINI-00 + SS-EXP-2)



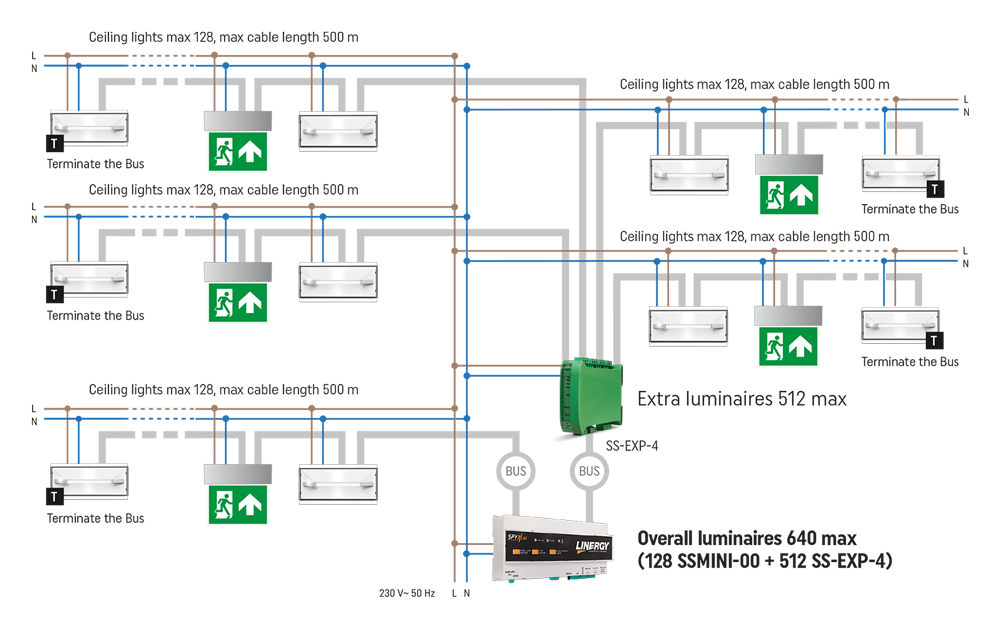

EXAMPLE OF CONNECTION DIAGRAM WITH BUS EXPANDER GIVING 4 EXTRA LINES (SSMINI-00 + SS-EXP-4)

Linergy technical intervention is required for existing systems to update the central unit.

SYSTEM TESTS
Test management allows to choose the test day and time for each of the 32 groups into which the system is divided. It was conceived to be easily integrated with modern building automation systems. In fact, it has an Ethernet port with TCP/IP protocol: the standard for all modern technological systems. The station is also equipped with a Web Server for access to all of its functions via internet, using a common browser.
Spy System controls the efficiency of the emergency system in compliance with EN 50172 and UNI 11222.
It signals and records any anomalies that the system displays by running two types of periodic tests on the connected emergency luminaires.

Learn more

1. Functional test
The general functioning of the luminaire, and in particular the light source, are tested. A negative result indicates that the light source needs to be replaced.
2. Duration test
A shortage of electrical energy is simulated. The luminaire is lit via the internal battery until it is completely discharged. In this way, it is possible to measure the real autonomy of the emergency luminaire and compare it with nominal. The failure of this test indicates that the battery should be replaced.

The central unit is set-up to carry out the functional test every 15 days and the duration test every 90 days. These frequencies can be varied to ones liking by operating on both the entire system and groups of luminaires.
Even the parameters for the running of the test can be changed. For example, the 2-hour duration test can be arranged for a 3-hour duration luminaire if such duration is required for the specific application. In this way, it is possible to have a system that lasts longer over time.

EVENT LOG

The central unit manages a complete event log on non-volatile memory. In addition to the test results, all the events that occur on the system, such as emergency interventions or any inhibitions, are memorized.
The event log can be viewed on the display and printed on the built-in printer. By connecting to an on-site PC or remotely via the intranet/internet network, the event log can be accessed and copied onto the PC for subsequent elaborations.

WEB SERVER

To connect with the Spy System unit, whether it is PC linked to the central unit via local network or internet, no specific program is necessary.
In fact, the central unit is equipped with a web server that allows access to all the functionalities. With the use of a common browser for Internet (for example, Chrome or Firefox), it works with all operating systems, Windows, Mac or Linux.

Enter into demonstration area to test the functionality of the Spy System systems.



BLOCK DIAGRAM AND CONNECTIONS

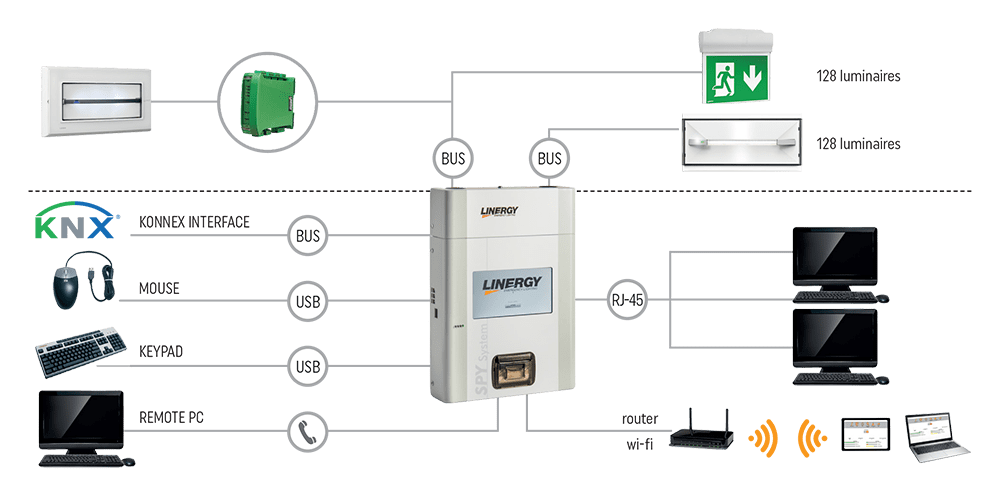

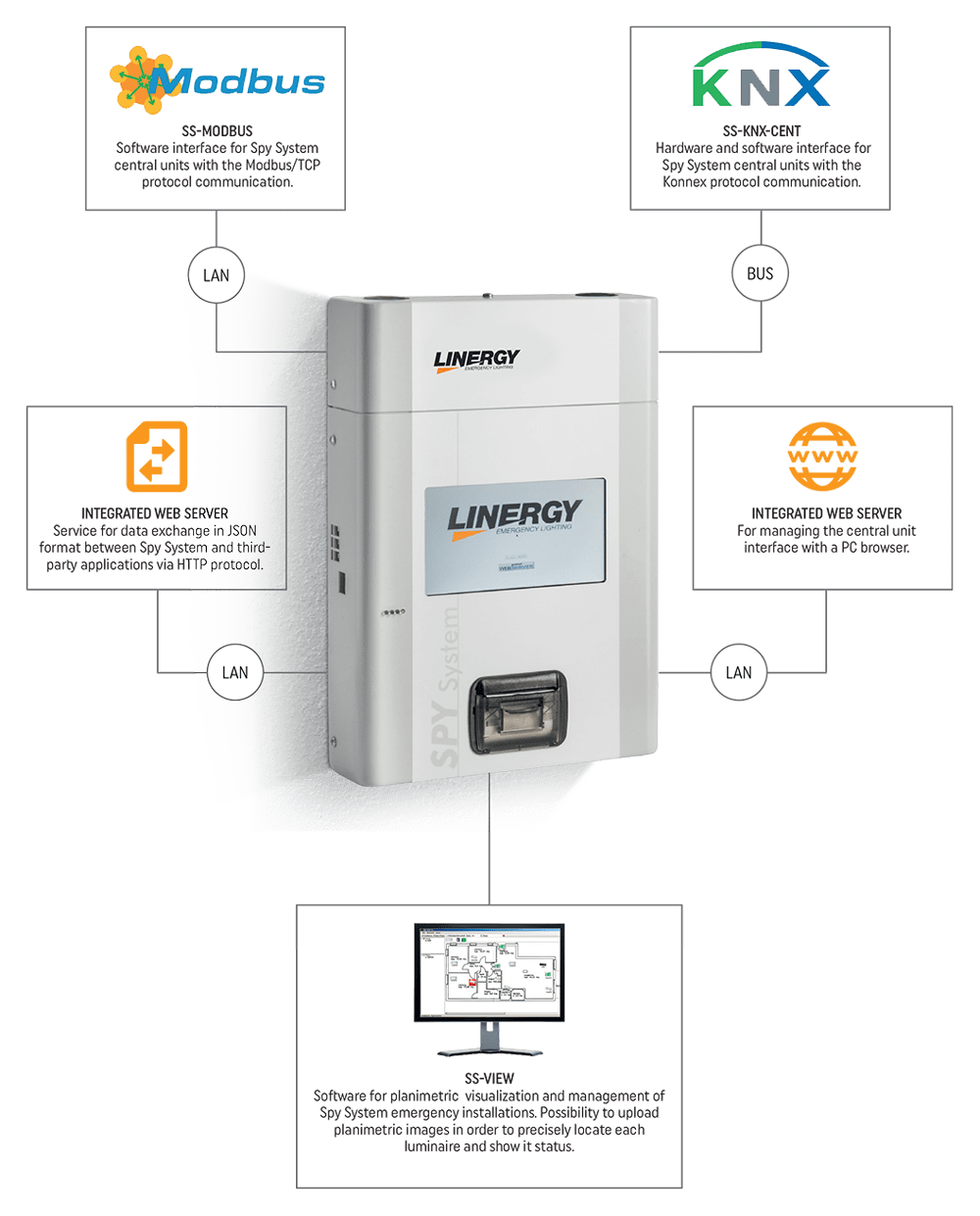

Examples of possible connections that show how the system works. The technical characteristics may vary depending on the model. For further information please contact Linergy technical assistance (+39 0735 597425)

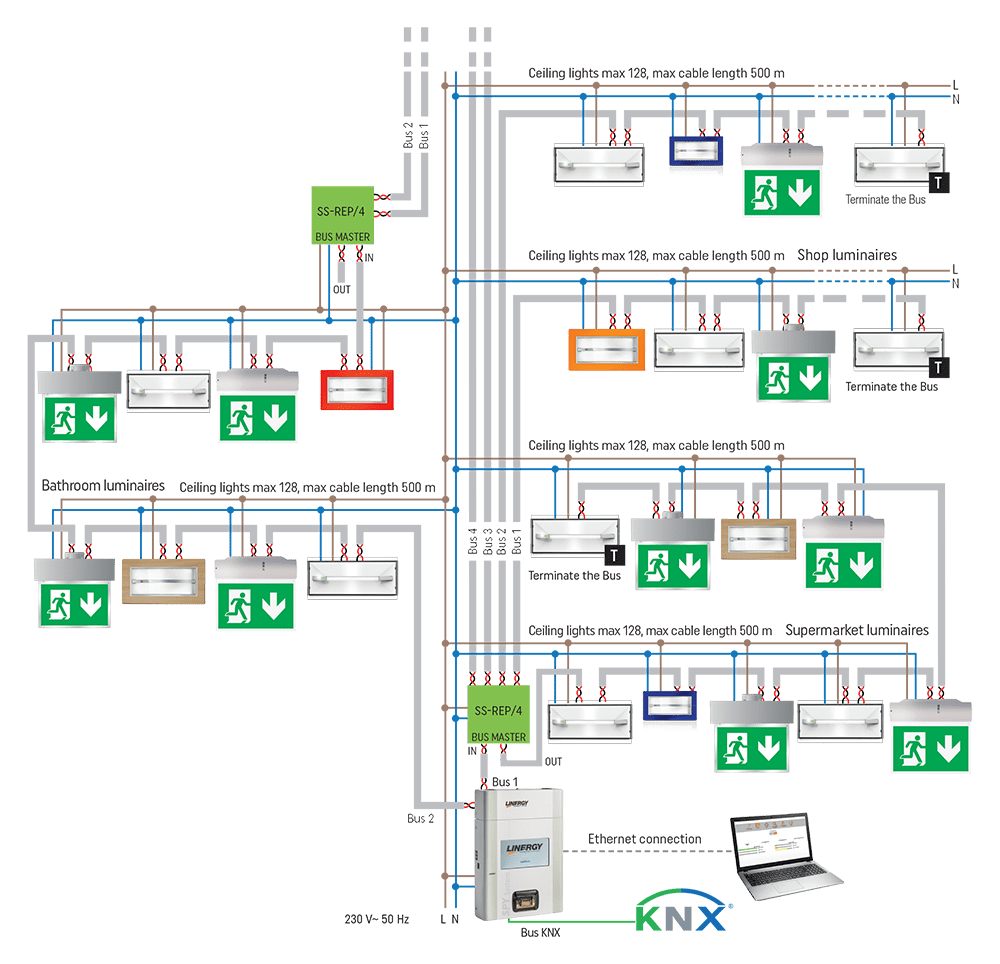

INTEGRATION OF A CENTRAL UNIT IN A BMS SYSTEM (Building Management System)

TECHNICAL FEATURES
  • Control system for monitoring emergency lighting installations
  • System compliant to norms EN 50172 and UNI 11222
