< SPY SYSTEM

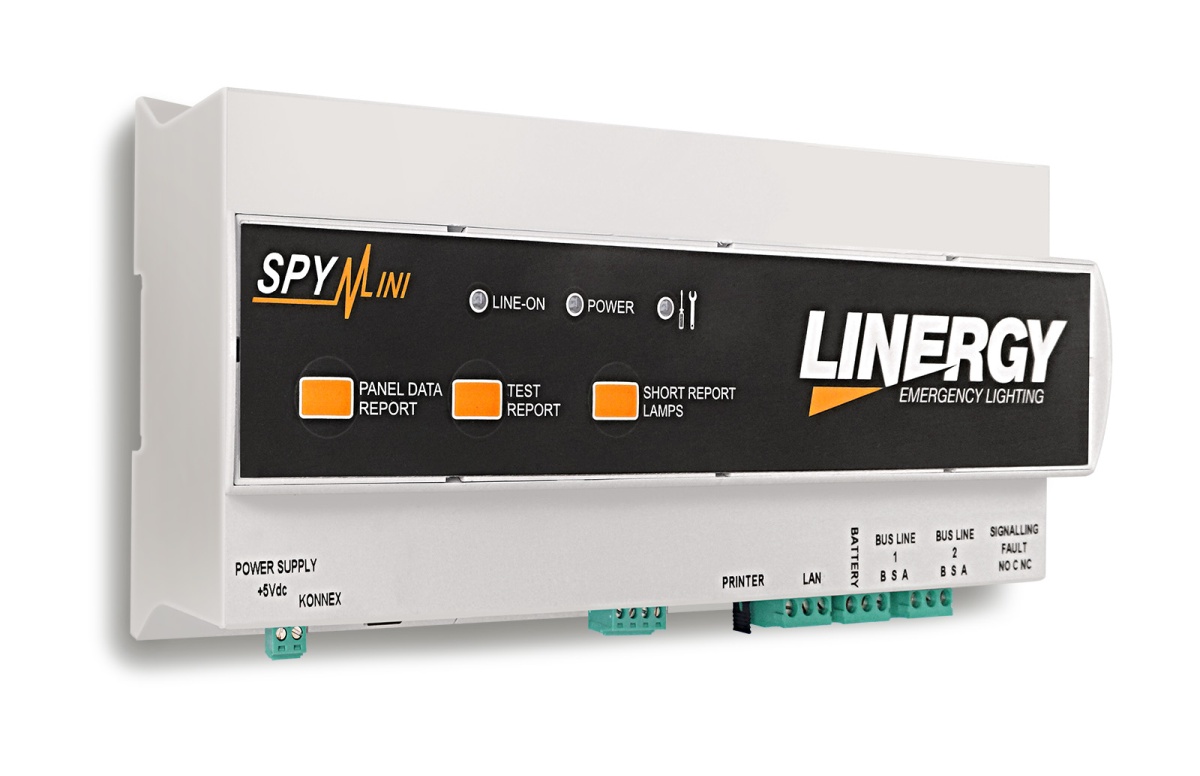

SS1111

SSMINI-170

IP20

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
POWER SUPPLY
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
INTERFACE
  • Display: no
  • Local user interface: -
  • Remote user interface: web server
  • Printer: optional
  • Wireless option: yes
LUMINAIRES
  • Luminaires handled: 170 max (expandable by means of Expander)
  • Groups handled: 4 max
  • Number of repeaters: 8 max
BATTERY
  • Type: Li-FePO4
  • Duration in battery mode: 4 h
COMMUNICATION
  • Data bus: 2 wires with polarity (twisted and shielded)
  • Communication protocol: TCP/IP via ethernet
  • Data ports: 1 RJ 45 + 1 clean contact for error alarm
INSTALLATION
  • Installation: DIN rail

A117

HW AND SW INTERFACE KONNEX SSMINI

View

A118

SW INTERFACE FOR TCP/MODBUS SPY SYSTEM

View

A120

GRAPHIC SUPERVISION SOFTWARE SPYSYSTEM

View

A121

PRINTER MODULE FOR SPY MINI

View

A122

BUS REPEATER 2X128 256 LUMINAIRES

View

A123

BUS REPEATER 4X128 512 LUMINAIRES

View

A124

COMAND FOR LIGHT LEVEL

View

A270

SPY SYSTEM WIRELESS RANGE EXTENDER

View

A301

BUS EXPANDER 2 LINES + 64 ADDITIONAL LUMINAIRES

View

A302

BUS EXPANDER 2 LINES + 128 ADDITIONAL LUMINAIRES

View

A303

BUS EXPANDER 4 LINES + 256 ADDITIONAL LUMINAIRES

View

A304

BUS EXPANDER 4 LINES + 512 ADDITIONAL LUMINAIRES

View

A315

SPY SYSTEM WIRELESS ACCESS POINT

View

A316

WIRELESS EXPANDER 128 ADDITIONAL APPLIANCES

View

A112

INTERNATIONAL TRAVEL FOR SYSTEM START-UP

View

A113

INTERNATIONAL TRAVEL WITH 1 NIGHT FOR SYSTEM START-UP

View

A272

4H CENTRAL START-UP SERVICE

View

A273

8H CENTRAL START-UP SERVICE

View

B102

BATTERY LiFePO4 3,2V 3AH SIZE 18650

View

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

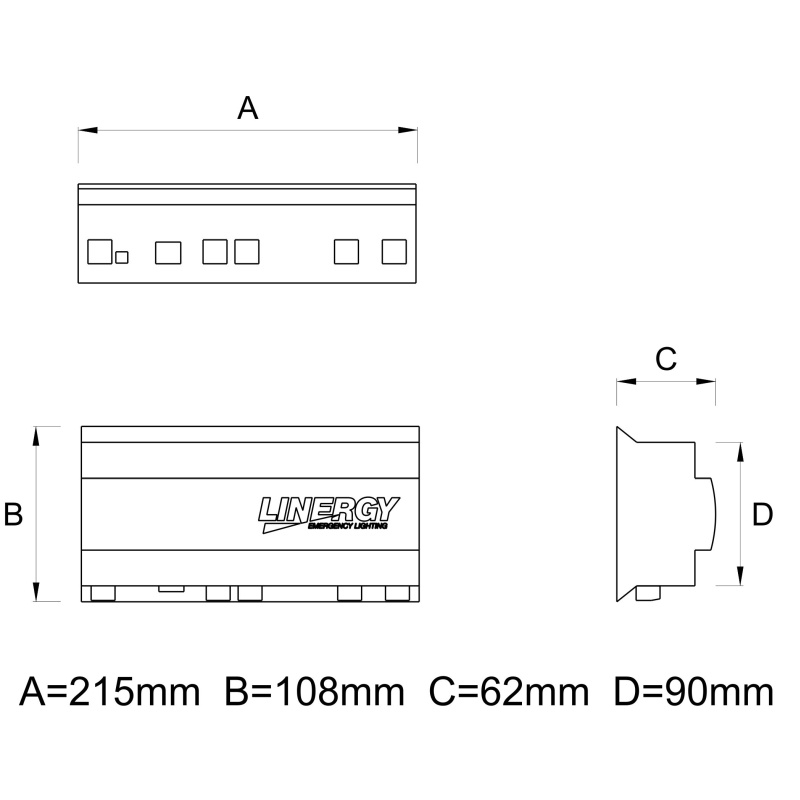

Technical drawing

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

Technical drawing
