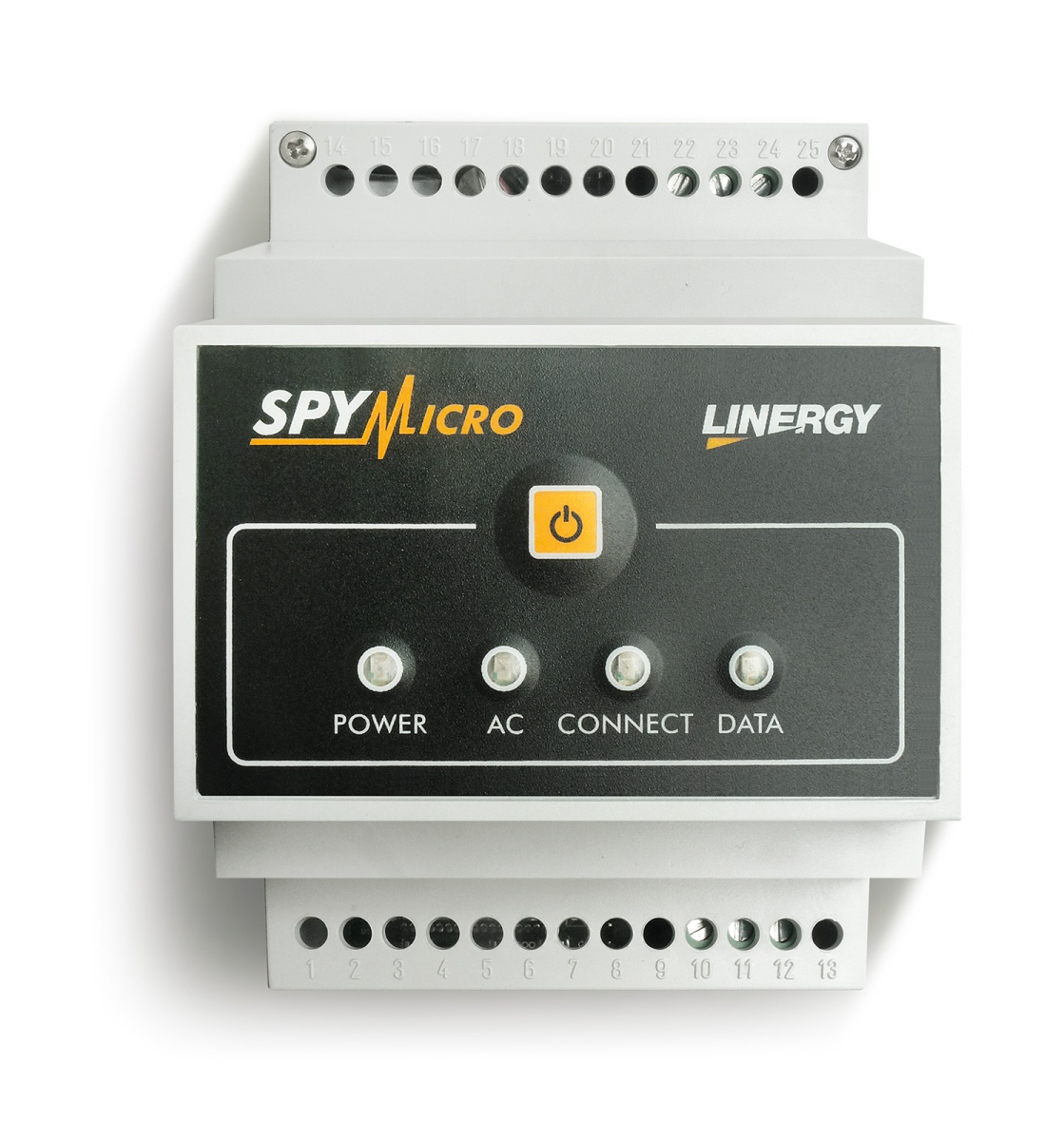

SS1112

SSMICRO

IP20

Technical features

properties
  • System for management and maintenance of small installations with self contained luminaires
  • Delivery of installation reports via sms or e-mail
Item availability
In 5 days
Non-binding indication - shipping time not included
POWER SUPPLY
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
INTERFACE
  • Display: no
  • Local user interface: -
  • Remote user interface: iOS e Android app
  • Printer: no
  • Wireless option: yes
LUMINAIRES
  • Luminaires on the bus: 30 max on the central unit
  • Luminaires handled: 30 max
  • Groups handled: 1 max
  • Number of repeaters: -
BATTERY
  • Type: Li-FePO4
  • Duration in battery mode: 5 h
COMMUNICATION
  • Data bus: 2 wires with polarity (twisted and shielded)
  • Communication protocol: TCP/IP via Wi-Fi
  • Data ports: -
INSTALLATION
  • Installation: DIN rail
SYSTEM COMPOSITION


The Spy Micro central unit SS1112 must be used in conjunction with luminaires of the Spy System family.
The central unit can monitor and control each luminaire.

MANUAL TESTS ON THE SYSTEM

Spy Micro controls the efficiency of the emergency system in compliance with EN 50172 and UNI 11222.
It uses the app to signal any anomalies that occur on the system.


LOG BOOK

The central unit uses the app to manage a complete events log.
In addition to the test results, the application shows all the main events that occur on the system, such as emergency interventions or any inhibitions, are memorized.
SPY MOBILE APP

Spy Mobile is the app for the management of Linergy luminaires.
Check the emergency lights Linergy from your smartphone or tablet and speeds up the maintenance of your equipment.
The app can communicate with lamps reporting the results of tests of functionality and autonomy, send test and turn off the emergency.
You can also share the results via email or social forum to get a report of each plant Linergy.
It handles more emergency systems Linergy, each with a maximum of 30 luminaires.
Available for iPhone, iPad, Android smartphones and tablets. Download the app from  App Store Disponibile su Google Play


In order to operate the app requires to be connected to the central SPY MICRO SS1112

BLOCK DIAGRAM



Examples of possible connections that show how the system works. For further information please contact Linergy technical assistance (+39 0735 597425)

SPY MICRO WIRELESS

The Wireless interface can also be used with Spy Micro (SS1112) by means of SSW-ACCESS-POINT device (A315)
  • Wireless control of luminaires
  • Reduced installation time and cost
  • Totally wireless connection
  • Control by means of Spy Mobile app
  • Up to 30 luminaires can be controlled
  • High-performance certified frequency
TECHNICAL FEATURES
  • Wi-Fi connection
  • Automatic luminaire acquisition
  • Can be installed in the electric control boards on standard DIN rail
  • Automatic device switch-off on completion of maintenance
  • Historic memory of all events and tests run on the resident system on smartphone
  • Control system for monitoring emergency lighting installations
  • System compliant to norms EN 50172 and UNI 11222

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM file
  • Specifications text
  • Installation instructions
  • Download all

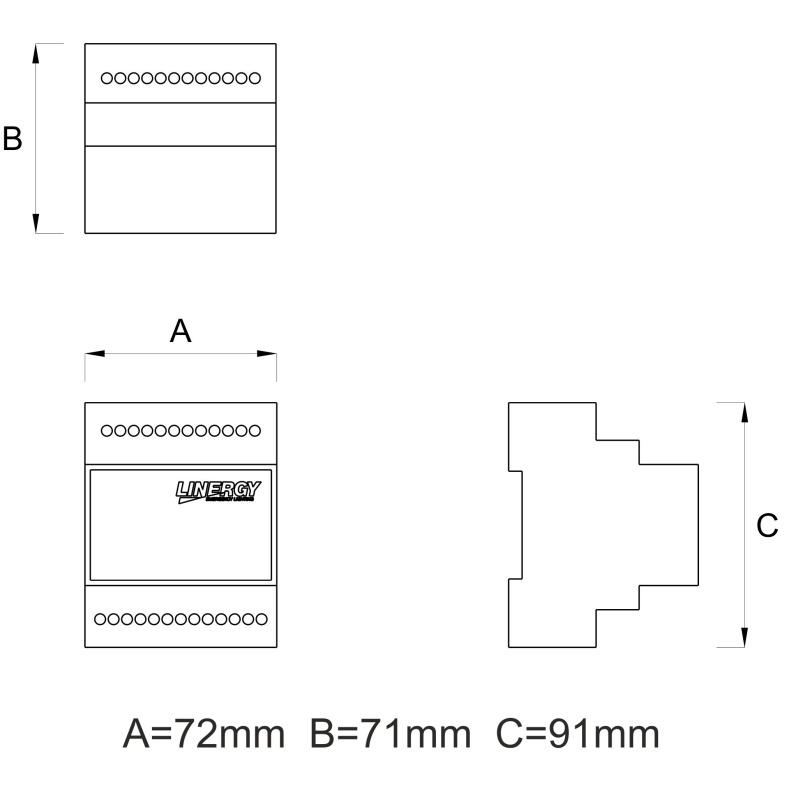

Technical drawing
