VIALED WALL

  • New high-brightness LED
  • Aluminum casing
  • Wall mount applications
  • Light source can be angled at 0°, 10° and 20°
  • Includes symmetrical and asymmetrical optics
IP20

List of results, divided by function

ALSO AVAILABLE IN WHITE COLOR
LIGHTING SOURCE INCLINATION

The luminaire has a mechanism which permits to change the inclination of the light source.
In this way it is possible to adapt the light beam to the characteristics of the ambient or the object to illuminate.


Light source at 0°

Light source at 10°

Light source at 20°

LIGHTING PERFORMANCE

ASYMMETRICAL
Individual installation

Escape route

Distanza massima coperta: 18,2 m > 1 lx

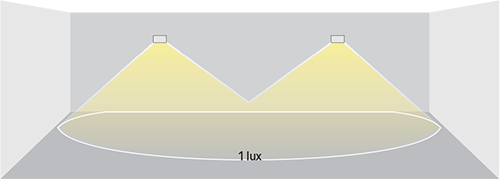

ASYMMETRICAL
Multiple installation

Escape route

Maximum distance covered:  36,6 m > 1 lx

SYMMETRICAL
Individual installation

Emergency exits, stairs, first aid areas, fire-fighting equipment, etc.

Maximum distance covered:  10,9 m > 1 lx

Mounting height 2,5 m. Values calculated on floors without reflections with VW03000IBS luminaire and 20° inclination.

TECHNICAL FEATURES

  • High luminous efficiency LED
  • Patented optics
  • Lens studied to optimise the luminous flux
  • Maximum battery charge time of 12h
  • Compliant with European standards EN 60598-1, EN 60598-2-22

INSTALLATION

Vialed Wall can be installed on walls.
