SC1510

SCB050P10

IP20

Technical features

properties
Item availability
In 5 days
Non-binding indication - shipping time not included
INPUT
  • Type: mono-phase
  • Voltage: 230 Vac, 50-60 Hz
OUTPUT
  • Type: mono-phase
  • Voltage: 230 Vac
  • Output circuits: 3 (NM/M)
POWER
  • Nominal power: 5.000 VA
  • Active power: 5.000 W
  • Power according to EN 50171: 3.100 W
  • Overload: 120%
BATTERIES
  • Type: 16 x Pb 12 V (VRLA AGM with 10-year expected life)
  • Duration: 1 h
  • Recharge: 80% of capacity reached in 12 h
INSTALLATION
  • Type: system + battery
  • Nr. cabinet: 2
  • Installation: floor

Note: upon request Spy Center Basic with TRI-PHASE INPUT/OUTPUT can be sized and produced.

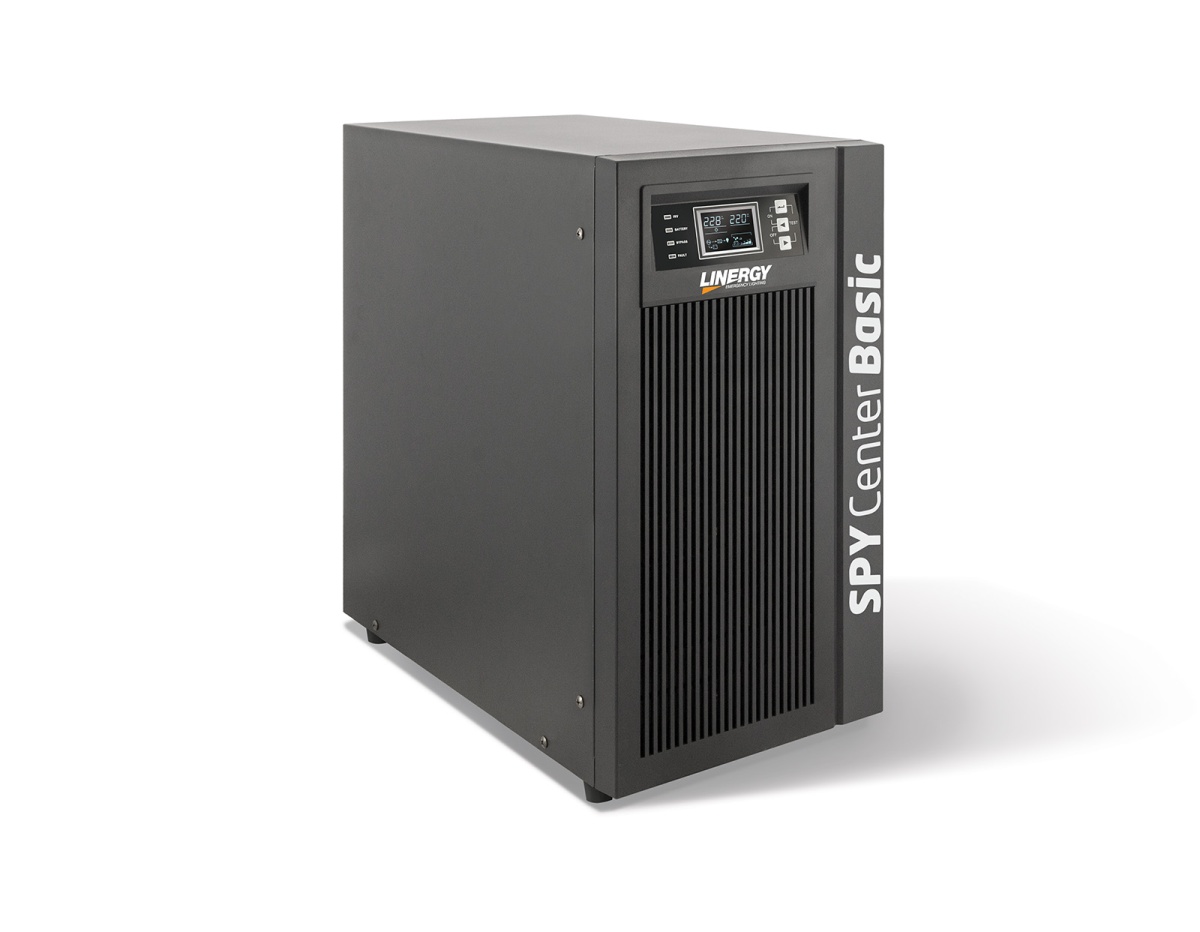

The image of the product is purely indicative as the system may vary depending on the sizing of the installation.

Downloads

  • Datasheet
  • LDT Photometric file
  • Installation distance table
  • EU declaration of conformity
  • 2D CAD block
  • BIM 3D file
  • Specifications text
  • Installation instructions
  • Download all

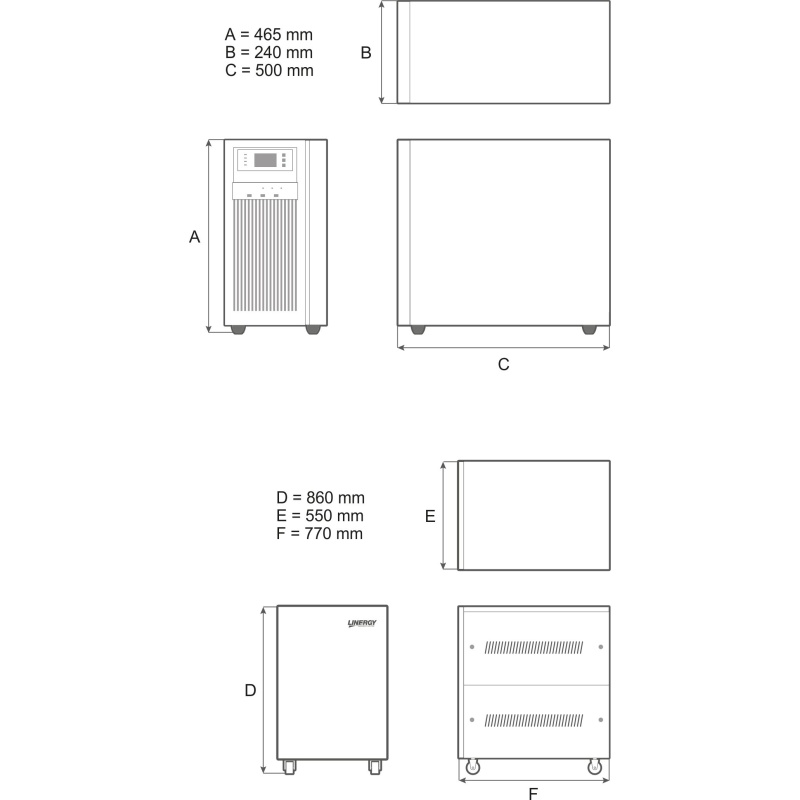

Technical drawing
